Overview

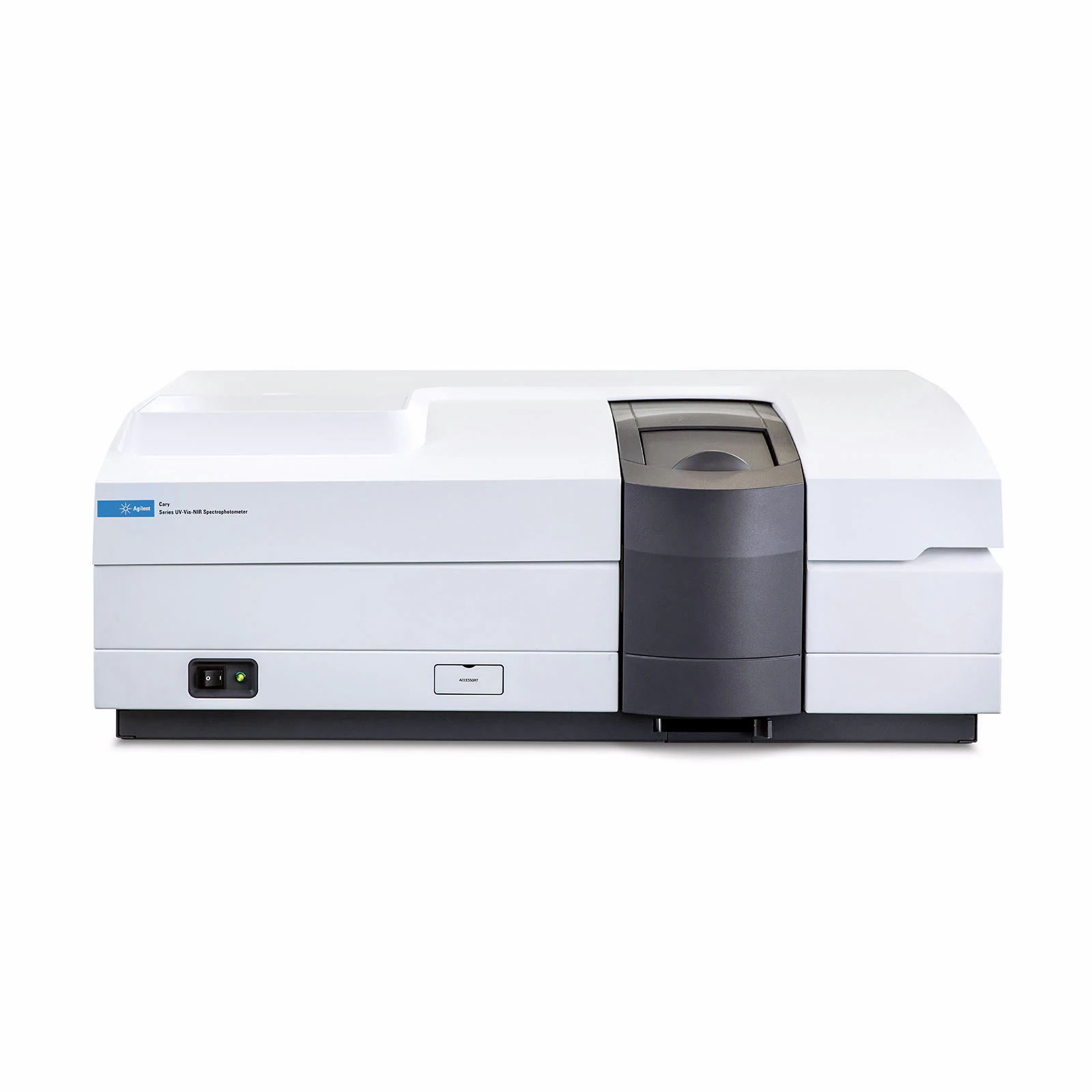

The Cary 6000i UV-Vis-NIR spectrophotometer has been tailored for unmatched photometric performance in the short-wave infrared (SWIR) 800–1800 nm range as well as the UV-visible 175 to 800 nm.

Key Features

1. Measure beyond 8.0 absorbance units with reference beam attenuation.
2. Measure 175 to 1800 nm using a narrow-band InGaAs detector and 600 l/mm NIR diffraction gratings for unmatched sensitivity in the short-wave infrared.
3. Cary WinUV software—modular software with powerful analysis and enhanced transfer and report export capabilities.
4. Versatile set of accessories for materials characterization spectroscopy, including spectral and diffuse reflectance.
5. Variable slit widths (down to 0.01 nm) for optimum control over data resolution.
6. Large sample compartment with LockDown mechanism for quick accessory changes and reproducible results.
7. Maximum light throughput using Schwarzchild source coupling optics and optimized grating blaze wavelength for higher accuracy at low transmission levels.
8. Minimal noise and stray light using a floating aluminum casting and double out-of-plane Littrow monochromator.
9. Extended dynamic range by attenuating the reference beam to balance double beam signal levels.
10. Nitrogen purging—separate purging in the sample and monochromator compartments to reduce oxygen and water vapor in the ultra-violet.
